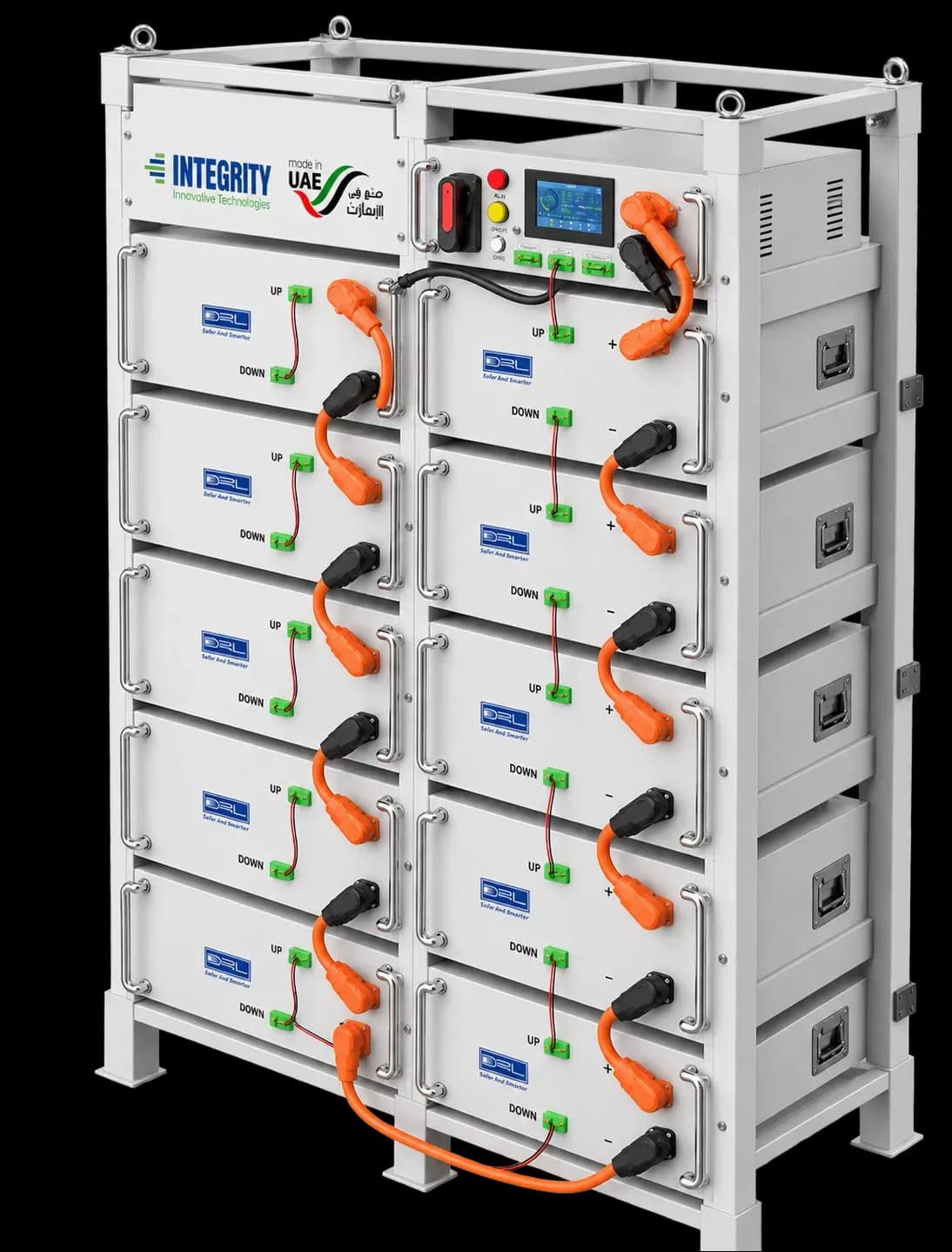

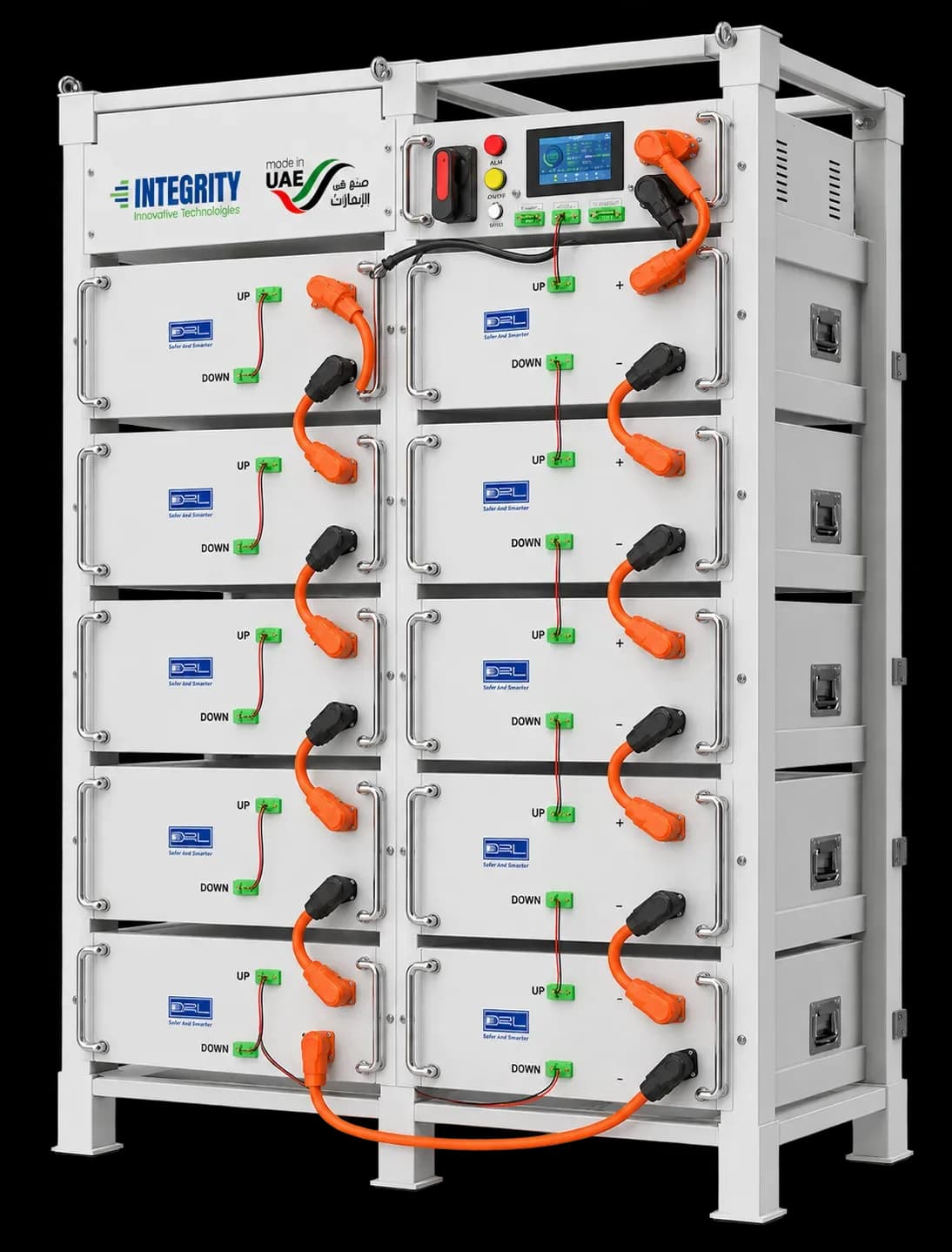

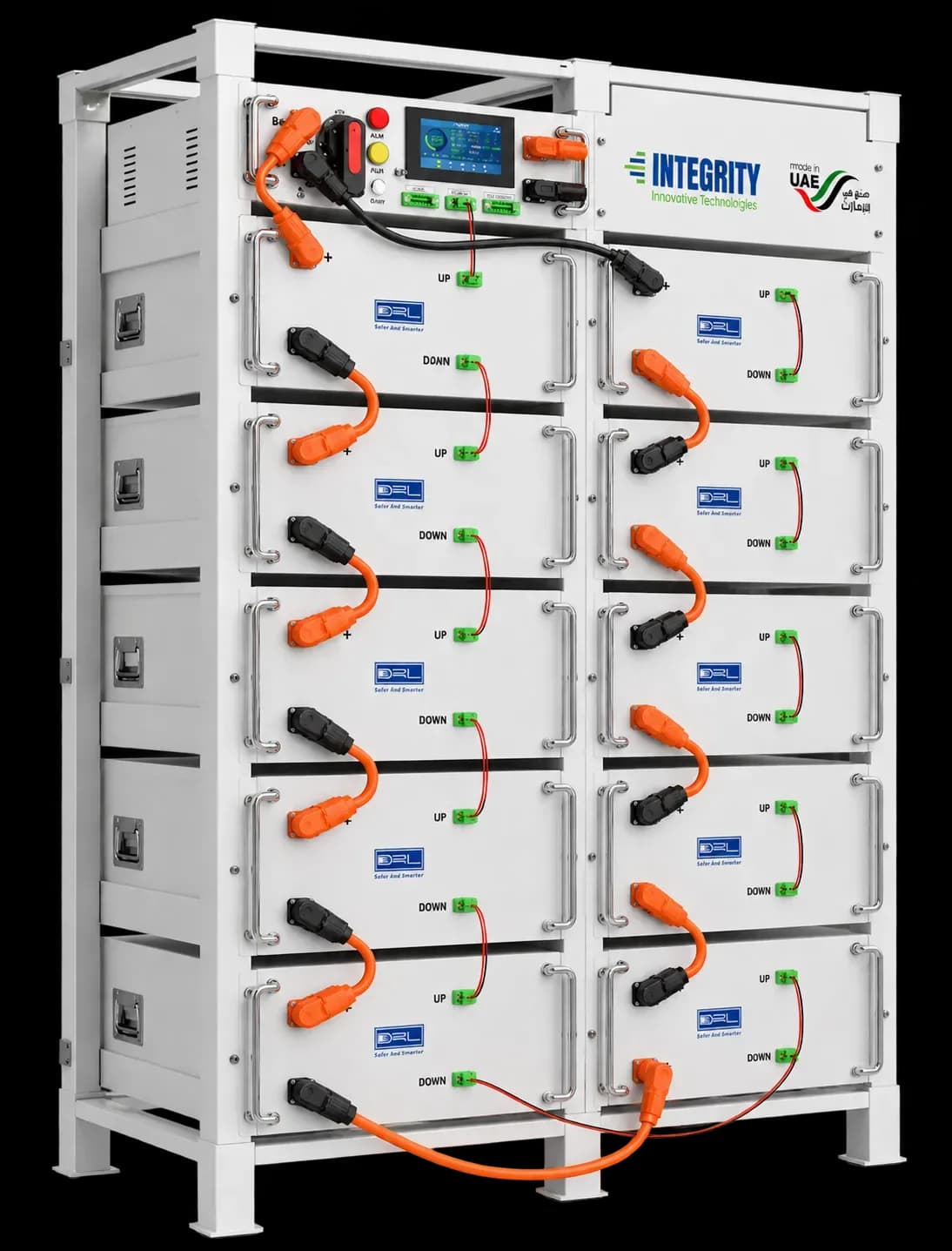

IntegriStore 160.77kWh High Voltage Energy Storage System
The IntegriStore 160.77kWh is a high-voltage energy storage system designed for residential energy storage applications. With a rated energy capacity of 160.77kWh and a rated voltage of 512V, it provides a high-capacity energy storage solution with 200A maximum charging and discharging current and a 10-year / 4000-cycle life specification.
- 160.77kWh rated energy capacity
- 512V rated voltage
- 57.6V maximum charging voltage
- 200A maximum charge & discharging current
- 210A peak charge & charging current (3S)
Key figures
- 01
160.77kWh
Rated Energy Capacity
- 02
512V
Rated Voltage
- 03
57.6V
Maximum Charging Voltage
- 04
200A
Maximum Charge & Discharging Current
Product overviewHigh-capacity energy storage for residential applications
The IntegriStore 160.77kWh is a high-voltage energy storage system designed for residential energy storage applications. With a rated energy capacity of 160.77kWh and a rated voltage of 512V, the system provides a high-capacity storage solution for energy-intensive residential applications.
The system supports a maximum charging voltage of 57.6V and a maximum charge and discharging current of 200A. Its peak charge and charging current is specified at 210A for 3 seconds, with a 240A breaker current.
Designed for long-term energy storage operation, the system has a specified life cycle of 4000 cycles at 25°C, corresponding to a 10-year life specification shown in the datasheet.
The system has a weight of 1150kg and dimensions of 1023 × 700 × 1555 ± 5mm. The battery is specified to meet UN38.3, MSDS, DGM, and CE standards.
Key features
- 160.77kWh rated energy capacity
- 512V rated voltage
- 57.6V maximum charging voltage
- 200A maximum charge & discharging current
- 210A peak charge & charging current (3S)
- 240A breaker current
- 1150kg weight
- 4000 cycles at 25°C
- 10-year life cycle specification
- 1023 × 700 × 1555 ± 5mm dimensions
- Lithium battery standard: UN38.3 / MSDS / DGM / CE
- High-voltage energy storage design
Specifications
Datasheet- Rated Energy Capacity
- 160.77kWh
- Rated Voltage
- 512V
- Maximum Charging Voltage
- 57.6V
- Maximum Charge & Discharging Current
- 200A
- Peak Charge & Charging Current
- 210A (3S)
- Breaker Current
- 240A
- Weight
- 1150kg
- Life Cycle
- 4000 Cycles at 25°C
- Life Cycle / Service Life
- 10 Years
- Dimensions
- 1023 × 700 × 1555 ± 5mm
- Lithium Battery Standard
- UN38.3 / MSDS / DGM / CE
FAQFrequently asked questions
What is the energy capacity of the IntegriStore 160.77kWh?
What is the rated voltage?
What is the maximum charging voltage?
What is the maximum charge and discharging current?
What is the peak charging current?
What is the breaker current?
What is the cycle life of the system?
What is the expected service life?
How much does the system weigh?
What are the dimensions of the system?
What standards does the battery comply with?
What type of energy storage system is this?
Ready to size your system?
Tell us your load profile and our engineers will spec, size, and price a system for you — no obligation.
