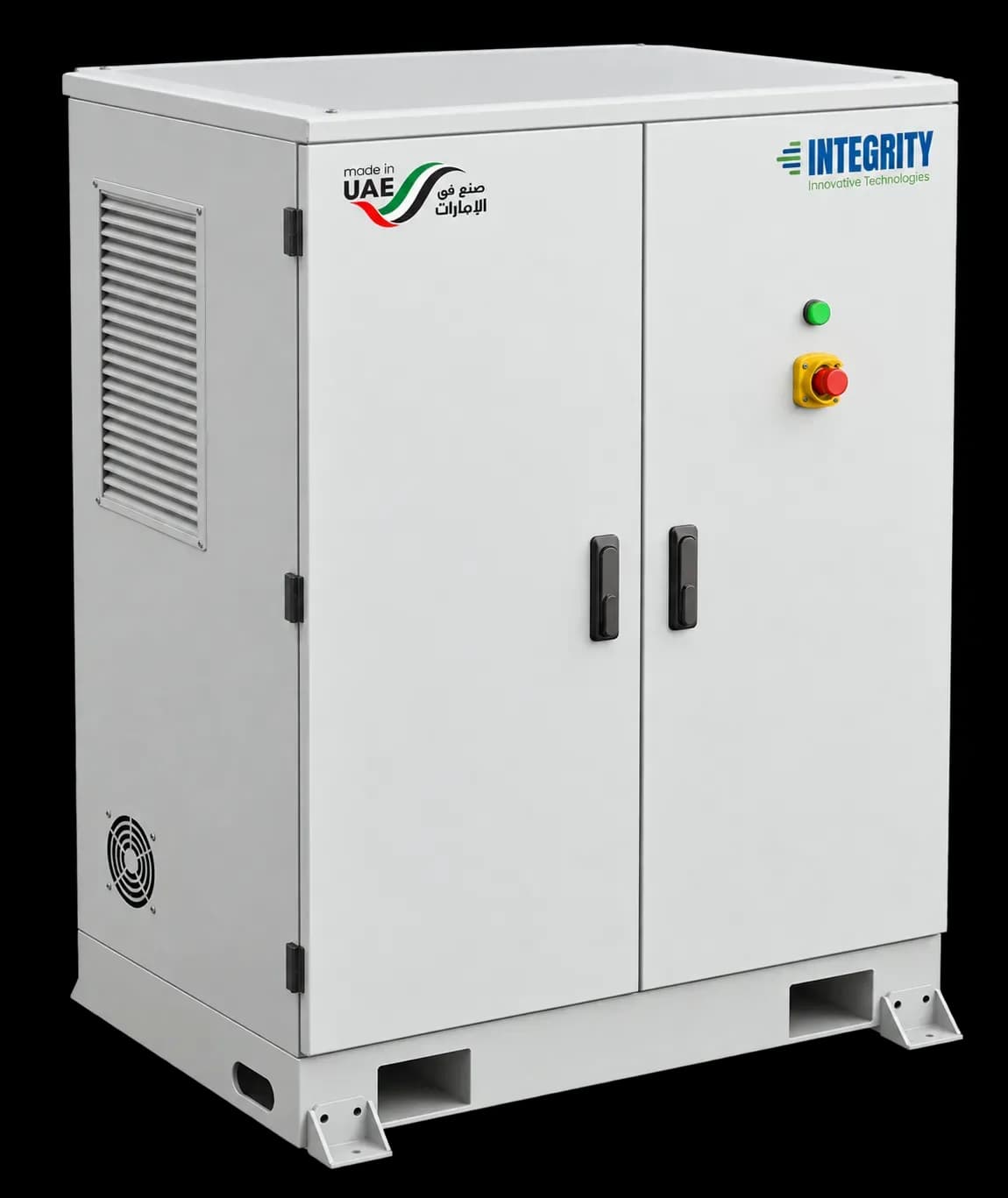

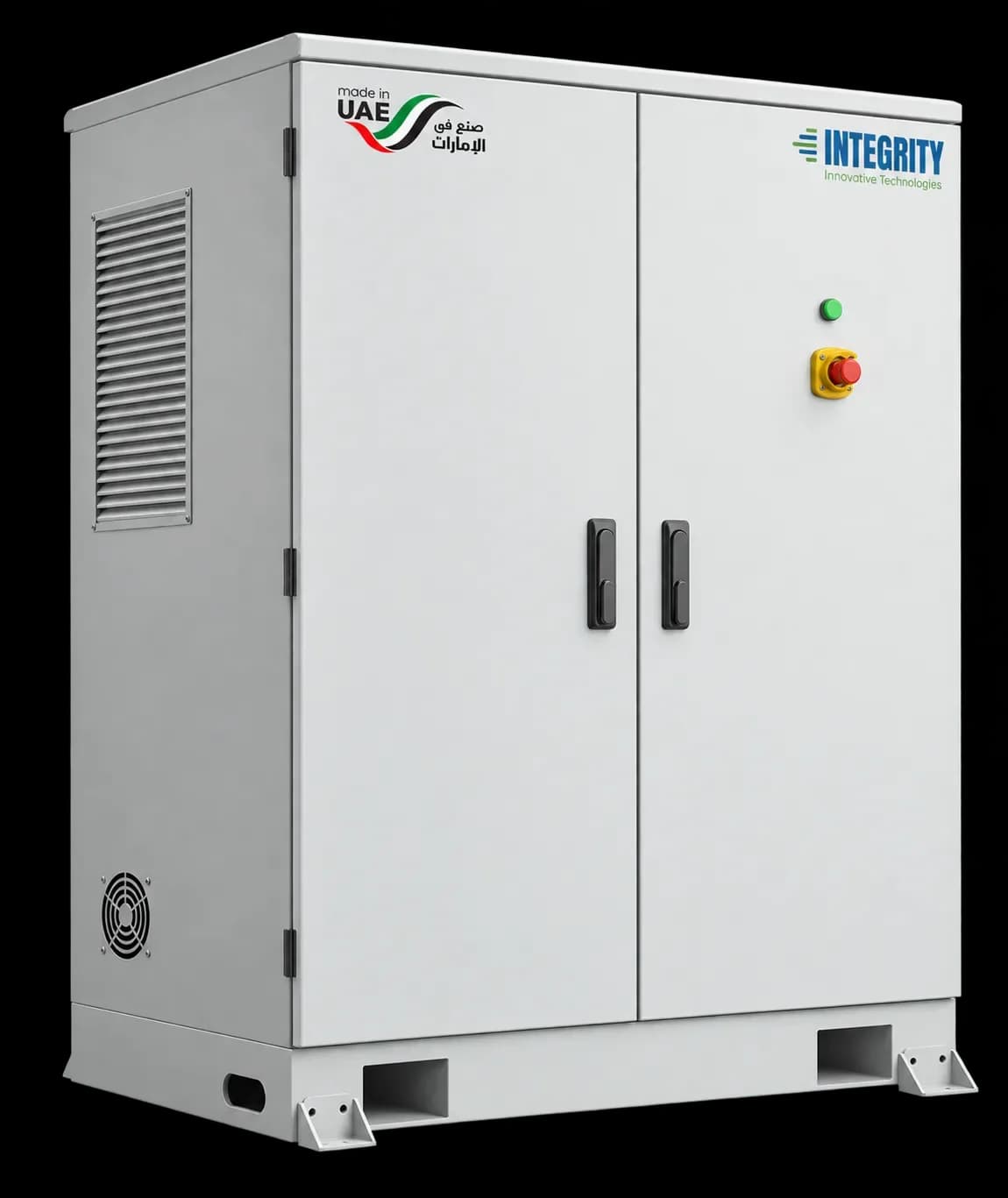

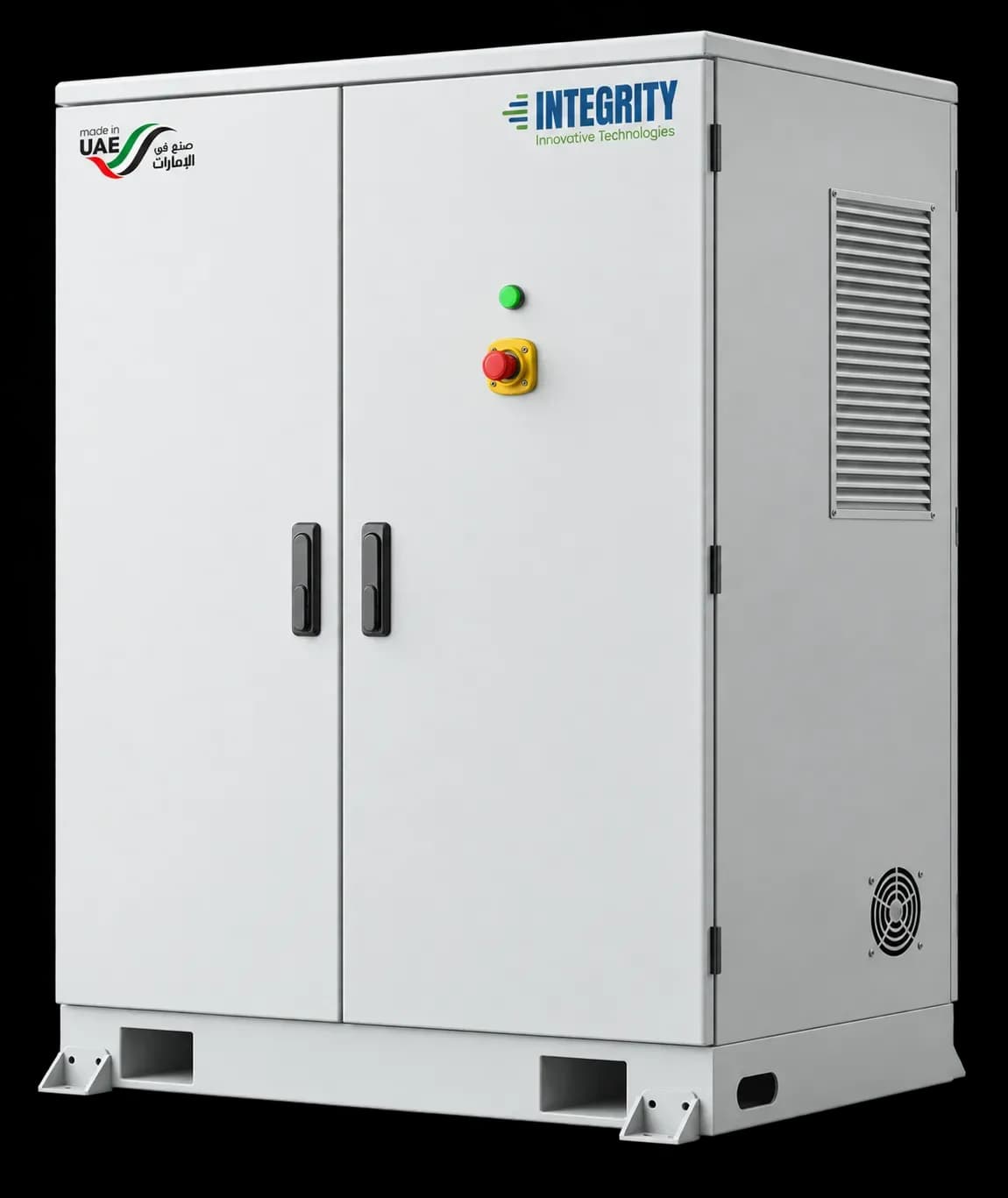

IntegriStore 96.46kWh High Voltage Energy Storage System
The IntegriStore 96.46kWh is a high-voltage energy storage system designed for residential energy storage applications. With a rated energy capacity of 96.46kWh and a rated voltage of 307V, it provides high-capacity energy storage with a 200A maximum charge and discharging current and a specified 4000-cycle life at 25°C.
- 96.46kWh rated energy capacity
- 307V rated voltage
- 350.4V maximum charging voltage
- 200A maximum charge & discharging current
- 210A peak charge & charging current (3S)
Key figures
- 01
96.46kWh
Rated Energy Capacity
- 02
307V
Rated Voltage
- 03
350.4V
Maximum Charging Voltage
- 04
200A
Maximum Charge & Discharging Current
Product overviewHigh-capacity energy storage for residential applications
The IntegriStore 96.46kWh is a high-voltage energy storage system designed for residential energy storage applications. With a rated energy capacity of 96.46kWh and a rated voltage of 307V, it provides a high-capacity storage solution for residential energy requirements.
The system has a maximum charging voltage of 350.4V and supports a maximum charge and discharging current of 200A. Its peak charge and charging current is specified at 210A for 3 seconds, with a 250A breaker current.
For long-term operation, the system is specified with a life cycle of 4000 cycles at 25°C, corresponding to a 10-year life specification shown in the datasheet.
The system weighs 1000kg and measures 1400 × 1065 × 1950mm. The datasheet specifies lithium battery compliance with UN38.3, MSDS, DGM, and CE, along with an IP54 rating.
Key features
- 96.46kWh rated energy capacity
- 307V rated voltage
- 350.4V maximum charging voltage
- 200A maximum charge & discharging current
- 210A peak charge & charging current (3S)
- 250A breaker current
- 1000kg weight
- 4000 cycles at 25°C
- 10-year life cycle specification
- 1400 × 1065 × 1950mm dimensions
- Lithium battery compliance: UN38.3, MSDS, DGM, CE
- IP54 enclosure rating
- High-voltage energy storage design
Specifications
Datasheet- Rated Energy Capacity
- 96.46kWh
- Rated Voltage
- 307V
- Maximum Charging Voltage
- 350.4V
- Maximum Charge & Discharging Current
- 200A
- Peak Charge & Charging Current
- 210A (3S)
- Breaker Current
- 250A
- Weight
- 1000kg
- Life Cycle
- 4000 Cycles at 25°C
- Life Cycle / Service Life
- 10 Years
- Dimensions
- 1400 × 1065 × 1950mm
- Lithium Battery Compliance
- UN38.3 / MSDS / DGM / CE
- IP Rating
- IP54
FAQFrequently asked questions
What is the energy capacity of the IntegriStore 96.46kWh?
What is the rated voltage?
What is the maximum charging voltage?
What is the maximum charge and discharging current?
What is the peak charging current?
What is the breaker current?
What is the cycle life of the system?
What is the expected service life?
How much does the system weigh?
What are the dimensions of the system?
What lithium battery standards does the system comply with?
What is the IP rating of the system?
What type of energy storage system is this?
Ready to size your system?
Tell us your load profile and our engineers will spec, size, and price a system for you — no obligation.
