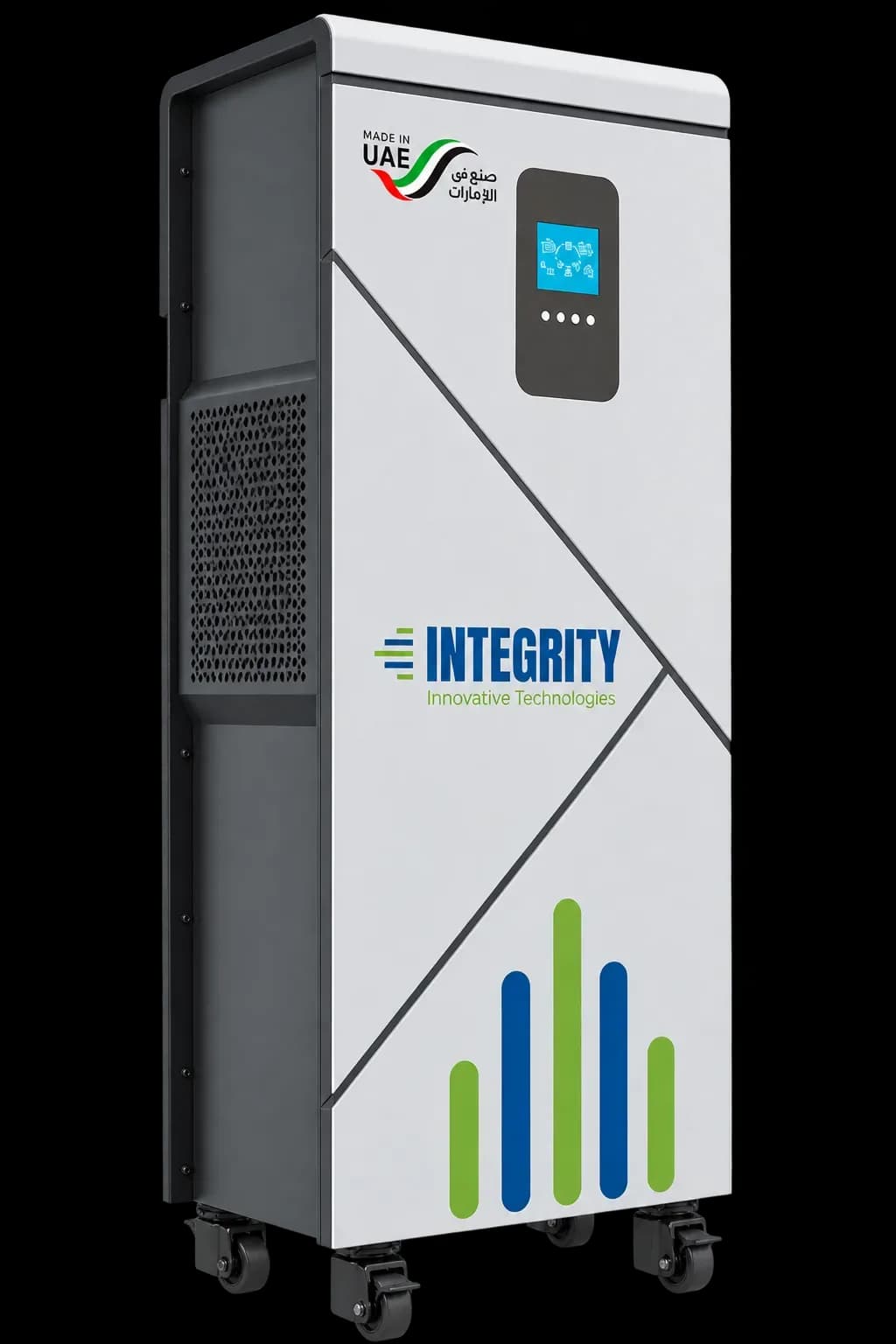

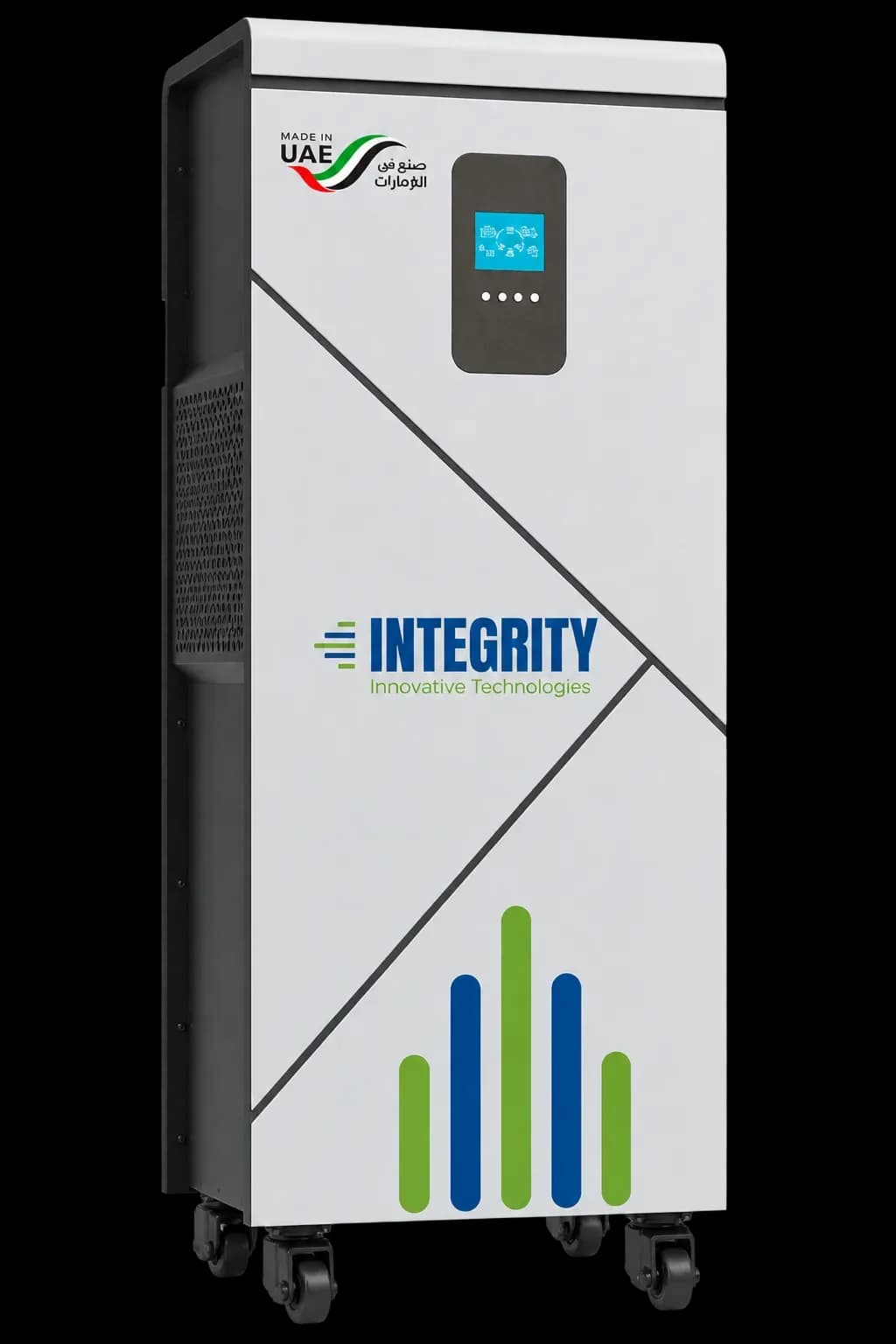

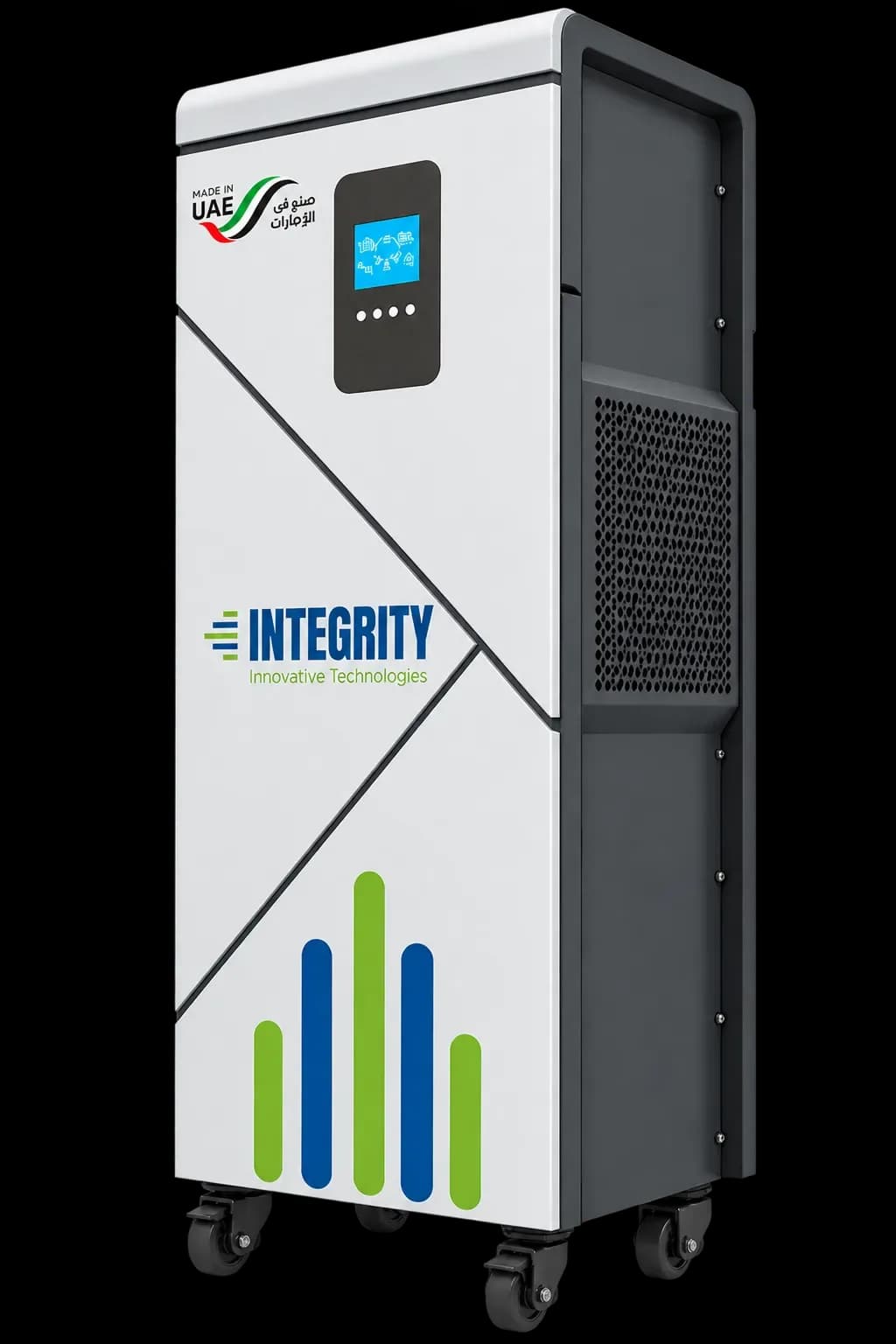

IntegriStore 16kWh/10kW All-in-One Energy Storage System
A 16kWh standing vertical energy storage system combining the inverter and storage battery in one integrated unit. Designed for household energy storage, the system features a 51.2V rated voltage, up to 200A charging and discharging current, and a 10kW rated output power.
- 16kWh rated energy capacity
- 10kW rated output power
- 51.2V rated voltage
- Up to 200A maximum charging and discharging current
- ≥6000 battery cycles
Key figures
- 01
16kWh
Battery: Rated Energy Capacity
- 02
51.2V
Battery: Rated Voltage
- 03
200A
Battery: Max. Charge & Discharging Current
- 04
≥6000
Battery: Number of Cycles
Product overviewAll-in-one energy storage for household applications
The IntegriStore 16kWh/10kW All-in-One Energy Storage System combines battery storage and inverter functionality within a single standing vertical unit. With a rated energy capacity of 16kWh and a rated output power of 10kW, it is designed as an integrated solution for household energy storage.
The battery system operates at a rated voltage of 51.2V and supports a maximum charging and discharging current of 200A. With a cycle life of ≥6000 cycles, the system is designed for repeated energy storage and discharge operation.
The integrated inverter provides a maximum input power of 11000W and supports a maximum input voltage of 450V. Its rated output power is 10000W, with a nominal output frequency of 50/60Hz.
The standing vertical configuration combines the storage battery and inverter in one system, providing an integrated format for household energy storage applications.
Key features
- 16kWh rated energy capacity
- 10kW rated output power
- 51.2V rated voltage
- Up to 200A maximum charging and discharging current
- ≥6000 battery cycles
- 11000W maximum input power
- 450V maximum input voltage
- 50/60Hz nominal output frequency
- Standing vertical design
- Integrated inverter and storage battery
Specifications
Datasheet- Battery: Rated Energy Capacity
- 16kWh
- Battery: Rated Voltage
- 51.2V
- Battery: Max. Charge & Discharging Current
- 200A
- Battery: Number of Cycles
- ≥6000
- Battery: Weight
- 160kg
- Battery: Dimensions
- 1190 × 390 × 238mm
- Inverter: Maximum Input Power
- 11000W
- Inverter: Maximum Input Voltage
- 450V
- Inverter: Rated Output Power
- 10000W
- Inverter: Nominal Output Frequency
- 50/60Hz
FAQFrequently asked questions
What is the energy capacity of the system?
What is the rated voltage?
What is the maximum charging and discharging current?
How many battery cycles does the system support?
What is the rated output power?
Ready to size your system?
Tell us your load profile and our engineers will spec, size, and price a system for you — no obligation.
