IntegriStore SES Series — All-in-One Home Energy Storage System
SKU: SES-10

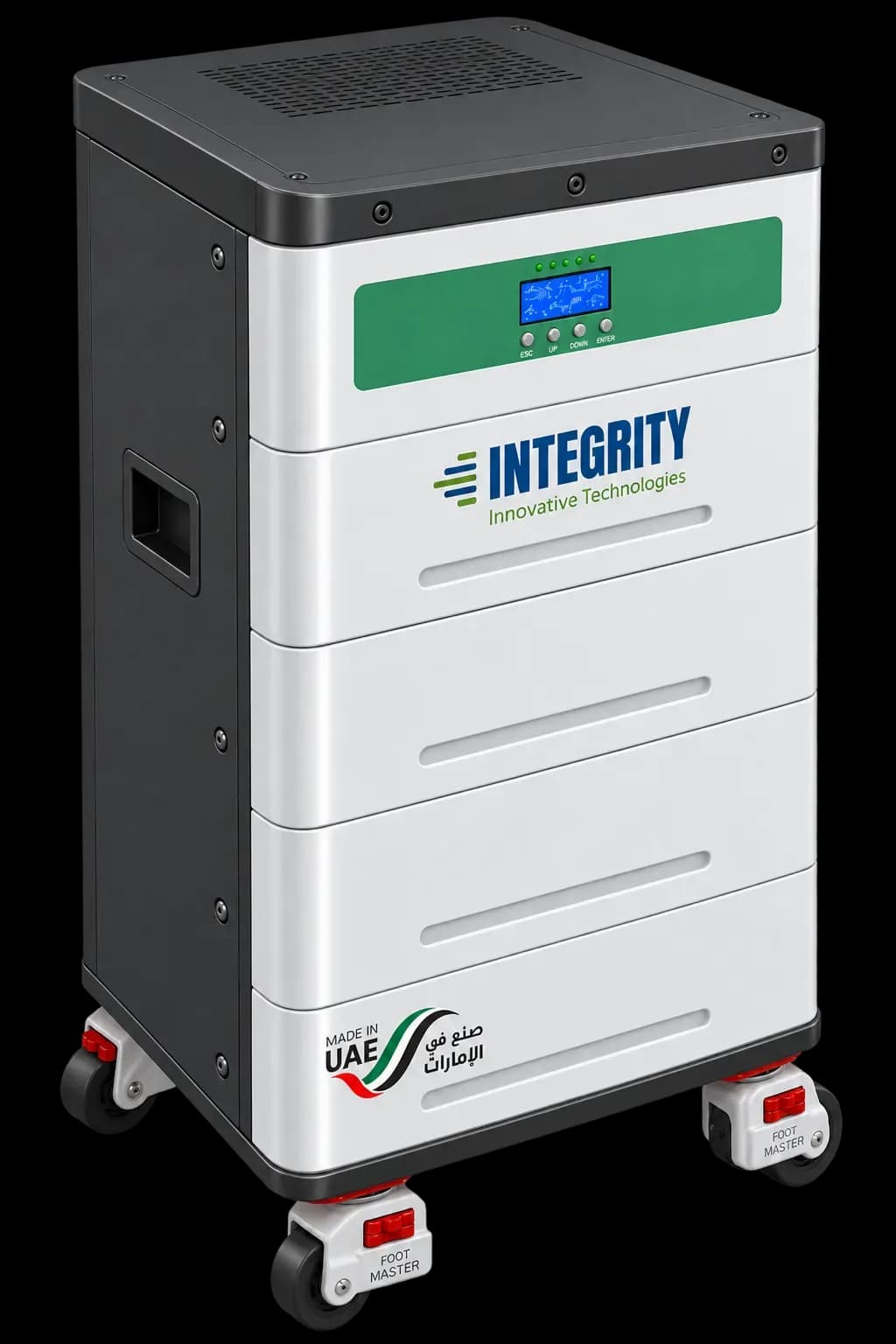

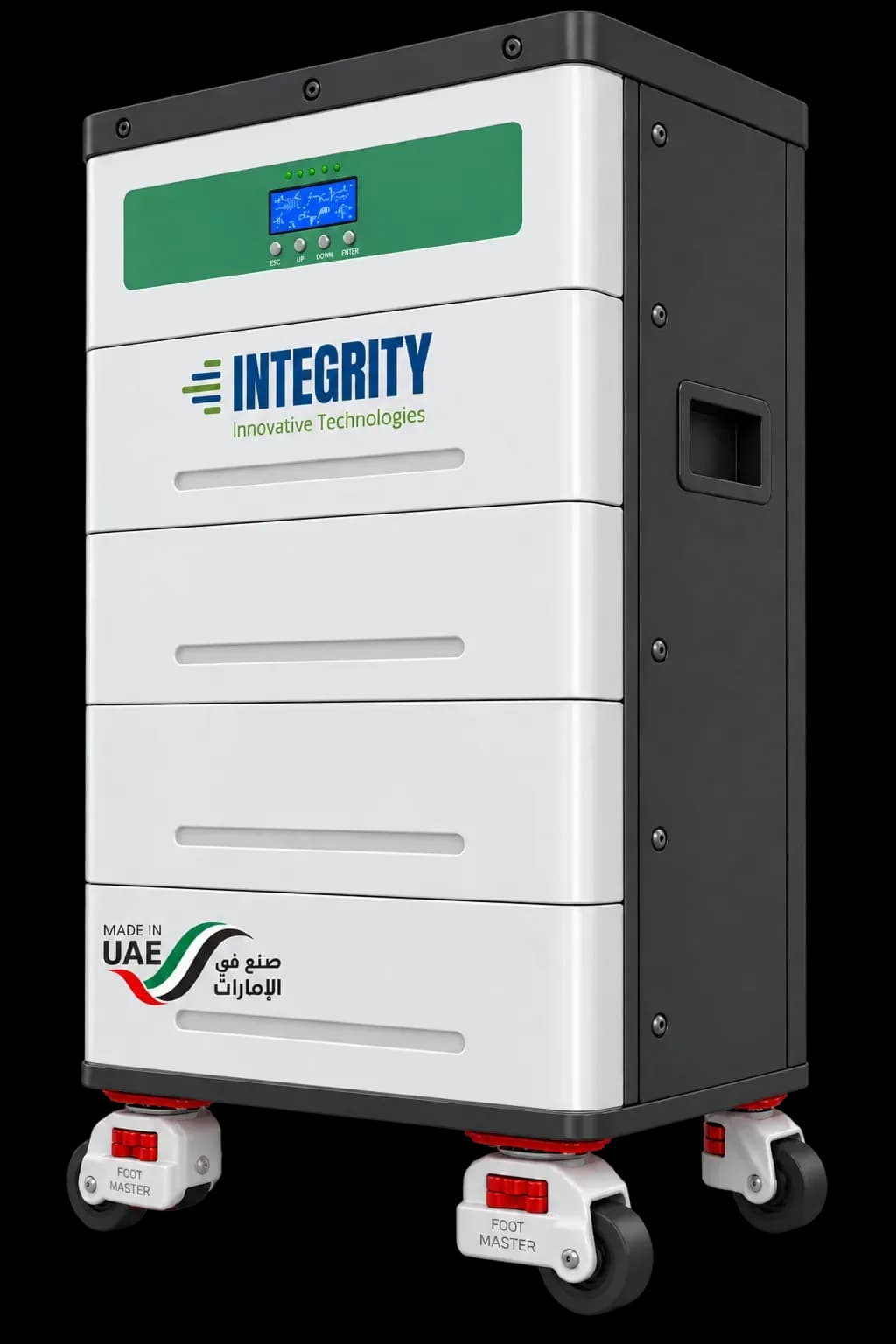

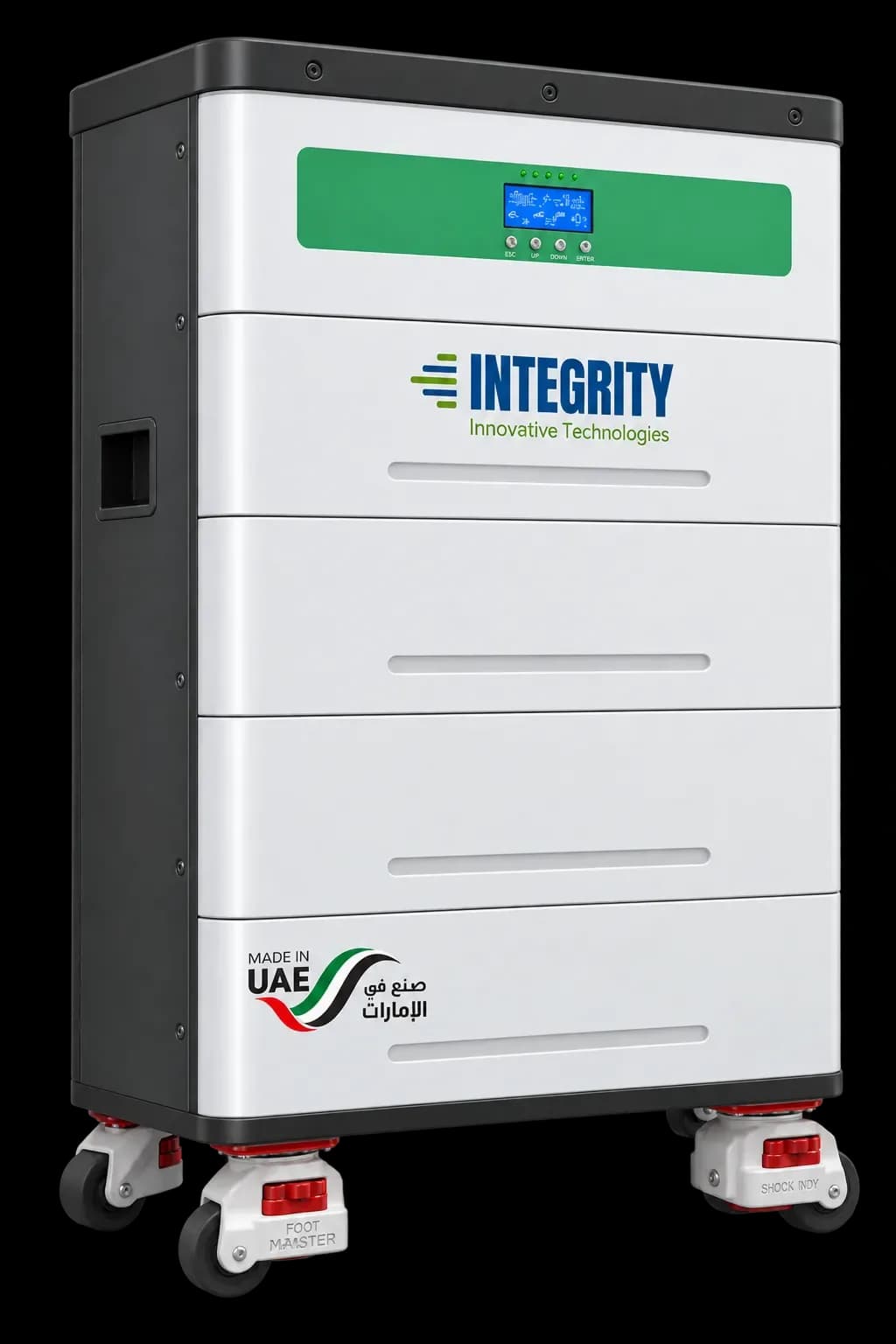

The IntegriStore SES Series is a standing vertical energy storage system combining battery storage and inverter functionality in one integrated solution. Available in SES-10, SES-15, and SES-20 configurations with 10kWh, 15kWh, and 20kWh energy capacities, the system is designed for household energy storage with flexible capacity options.
- Available in 10kWh, 15kWh, and 20kWh configurations
- Integrated inverter and battery storage system
- 51.2V DC battery voltage
- Up to 200A / 300A / 400A battery current depending on model
- Maximum inverter input power of 5500W
Key figures
- 01
51.2VDC
Battery Voltage
- 02
5500W
Maximum Inverter Input Power
- 03
450V
Maximum Inverter Input Voltage
- 04
5000W
Rated Output Power
Product overviewFlexible energy storage in a standing vertical design
The IntegriStore SES Series is a standing vertical energy storage solution that combines battery storage and inverter functionality into one integrated system. The series is available in three configurations — SES-10, SES-15, and SES-20 — providing 10kWh, 15kWh, and 20kWh of energy capacity respectively.
The battery configurations operate at 51.2VDC, with maximum battery current of 200A for SES-10, 300A for SES-15, and 400A for SES-20. Each model is designed with a different physical capacity and weight to accommodate its respective energy storage configuration.
The integrated inverter provides a maximum input power of 5500W and supports a maximum input voltage of 450V. The system has a rated output power of 5000W and a nominal output frequency of 50/60Hz.
The standing vertical format provides an integrated approach to household energy storage, with the system shown connected with photovoltaic panels, the power grid, a generator, household loads, and cloud management.
Key features
- Available in 10kWh, 15kWh, and 20kWh configurations
- Integrated inverter and battery storage system
- 51.2V DC battery voltage
- Up to 200A / 300A / 400A battery current depending on model
- Maximum inverter input power of 5500W
- Maximum inverter input voltage of 450V
- 5000W rated output power
- 50/60Hz nominal output frequency
- Standing vertical design
Specifications
Datasheet- Battery Voltage
- 51.2VDC
- Maximum Inverter Input Power
- 5500W
- Maximum Inverter Input Voltage
- 450V
- Rated Output Power
- 5000W
- Nominal Output Frequency
- 50/60Hz
- Design
- Standing Vertical
- Rated Energy Capacity
- 10kWh
- Weight
- 80kg
- Battery Current
- 200A
- Dimensions
- 610 × 440 × 665mm
FAQFrequently asked questions
What energy capacities are available in the SES Series?
What is the battery voltage?
What is the maximum battery current for each model?
What is the maximum inverter input power?
What is the maximum inverter input voltage?
Ready to size your system?
Tell us your load profile and our engineers will spec, size, and price a system for you — no obligation.
