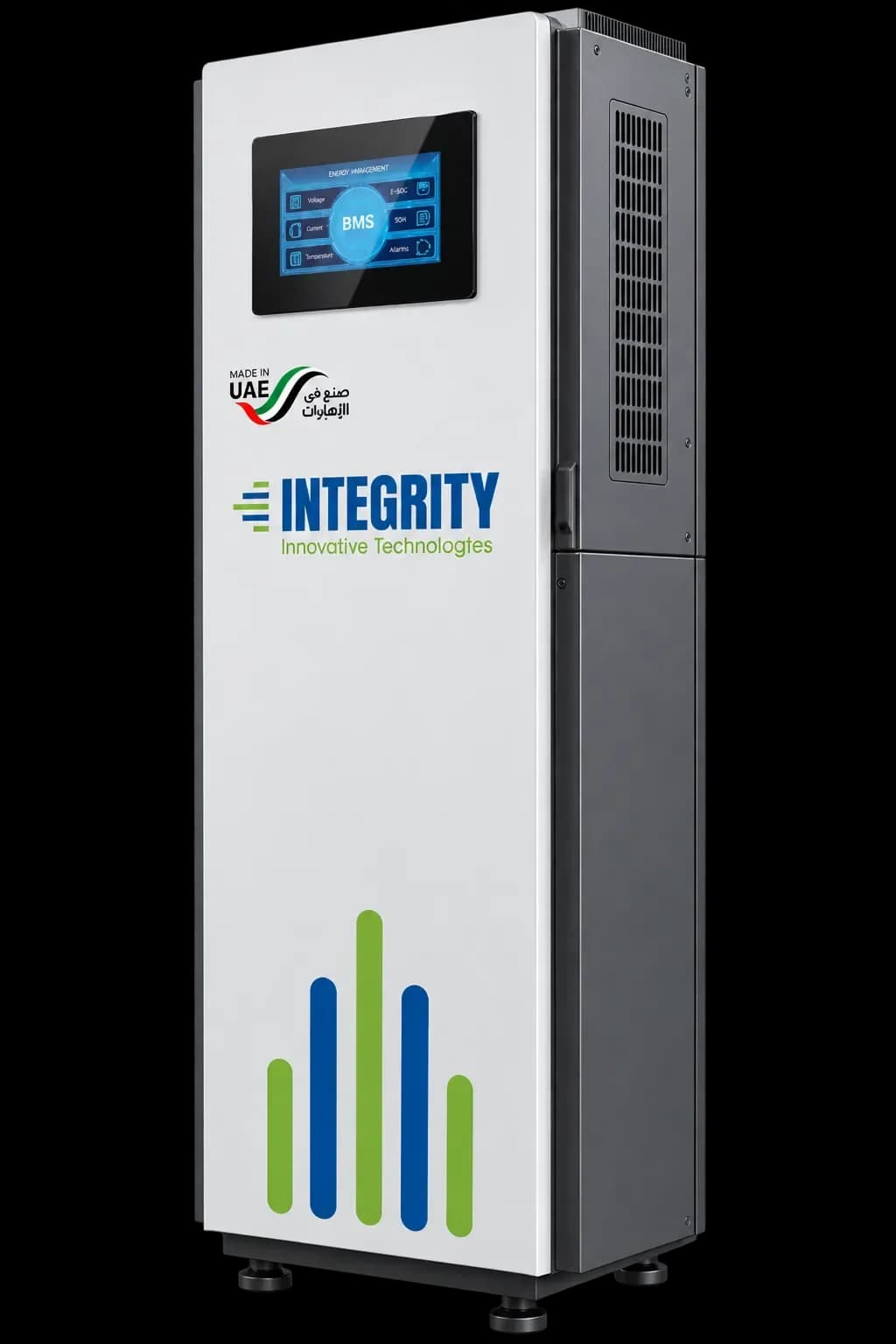

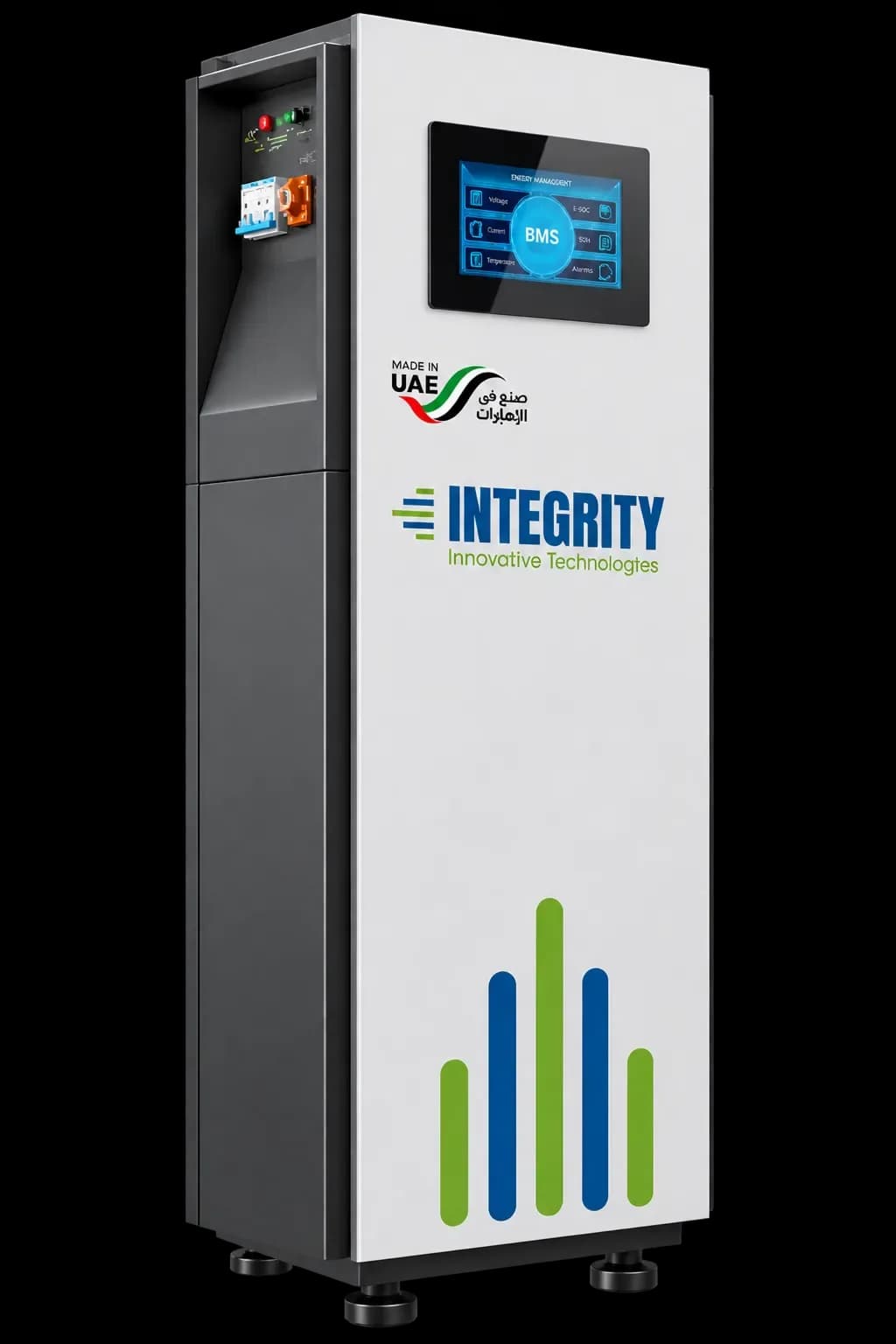

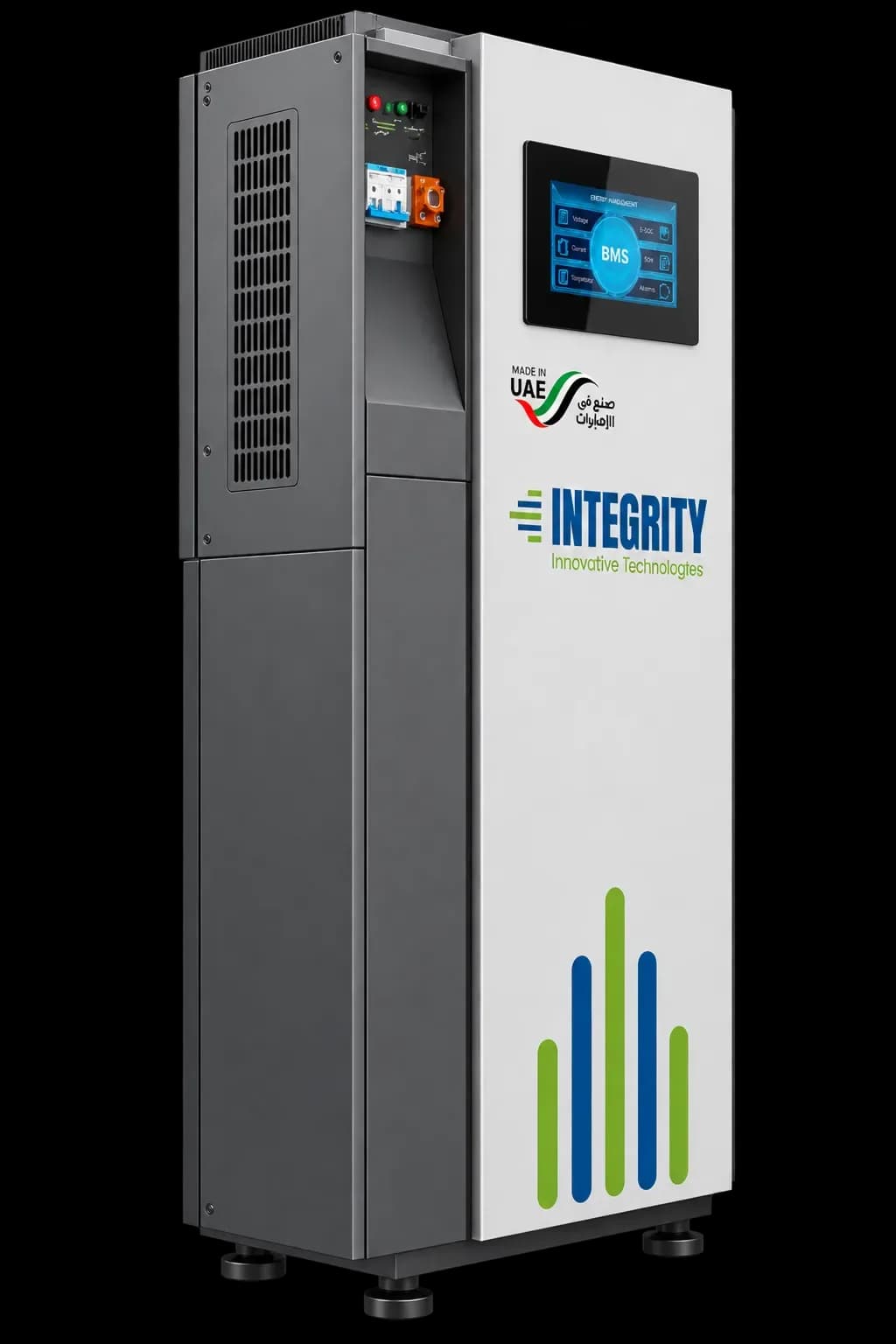

IntegriStore Vertical Home Energy Storage Battery
A high-capacity vertical lithium battery energy storage system designed for reliable residential energy storage, backup power, and renewable energy integration. With a 51.2V rated voltage, up to 200A charging and discharging current, and a 16kWh rated energy capacity, it provides a compact and powerful solution for modern household energy needs.
- 16kWh rated energy capacity
- 51.2V rated voltage
- Up to 200A charging & discharging current
- 220A peak charging & discharging current for 3 seconds
- 240A breaker current
Key figures
- 01
Vertical Type
Battery Type
- 02
16kWh
Rated Energy Capacity
- 03
15kWh / 16kWh
Battery Capacity
- 04
51.2V
Rated Voltage
Product overviewReliable energy storage for modern homes
The IntegriStore Vertical Home Energy Storage Battery is a high-capacity lithium battery system designed to store and deliver energy efficiently for residential applications. Its vertical form factor provides a compact installation footprint while offering up to 16kWh of rated energy capacity.
With a 51.2V rated voltage and up to 200A charging and discharging current, the system is designed to support demanding household energy requirements. A peak current capability of 220A for up to 3 seconds provides additional short-duration performance when required.
The integrated touch screen provides a convenient interface for monitoring and managing the battery system, while the built-in 240A breaker adds an additional layer of electrical protection.
Designed for integration with renewable energy systems, the battery can be used as part of a household energy setup alongside solar PV, generators, hybrid inverters, home appliances, and other connected loads.
Key features
- 16kWh rated energy capacity
- 51.2V rated voltage
- Up to 200A charging & discharging current
- 220A peak charging & discharging current for 3 seconds
- 240A breaker current
- Integrated touch screen
- Vertical space-saving design
- Lithium battery system
- UN38.3 / MSDS / DGM / CE compliant
Specifications
Datasheet- Battery Type
- Vertical Type
- Rated Energy Capacity
- 16kWh
- Battery Capacity
- 15kWh / 16kWh
- Rated Voltage
- 51.2V
- Max. Charging Voltage
- 57.6V
- Max. Charging & Discharging Current
- 200A
- Peak Charging & Discharging Current
- 220A (3s)
- Breaker Current
- 240A
- Weight
- 130kg / 140kg
- Display
- Touch Screen
- Dimensions
- 1190 × 390 × 238mm
- Battery Standard
- UN38.3 / MSDS / DGM / CE
FAQFrequently asked questions
What is the capacity of this battery?
What is the rated voltage?
How much charging and discharging current can it support?
Does the battery have a built-in display?
What is the breaker rating?
Ready to size your system?
Tell us your load profile and our engineers will spec, size, and price a system for you — no obligation.
