IntegriStore WALL10 — Wall-Mounted Energy Storage Battery

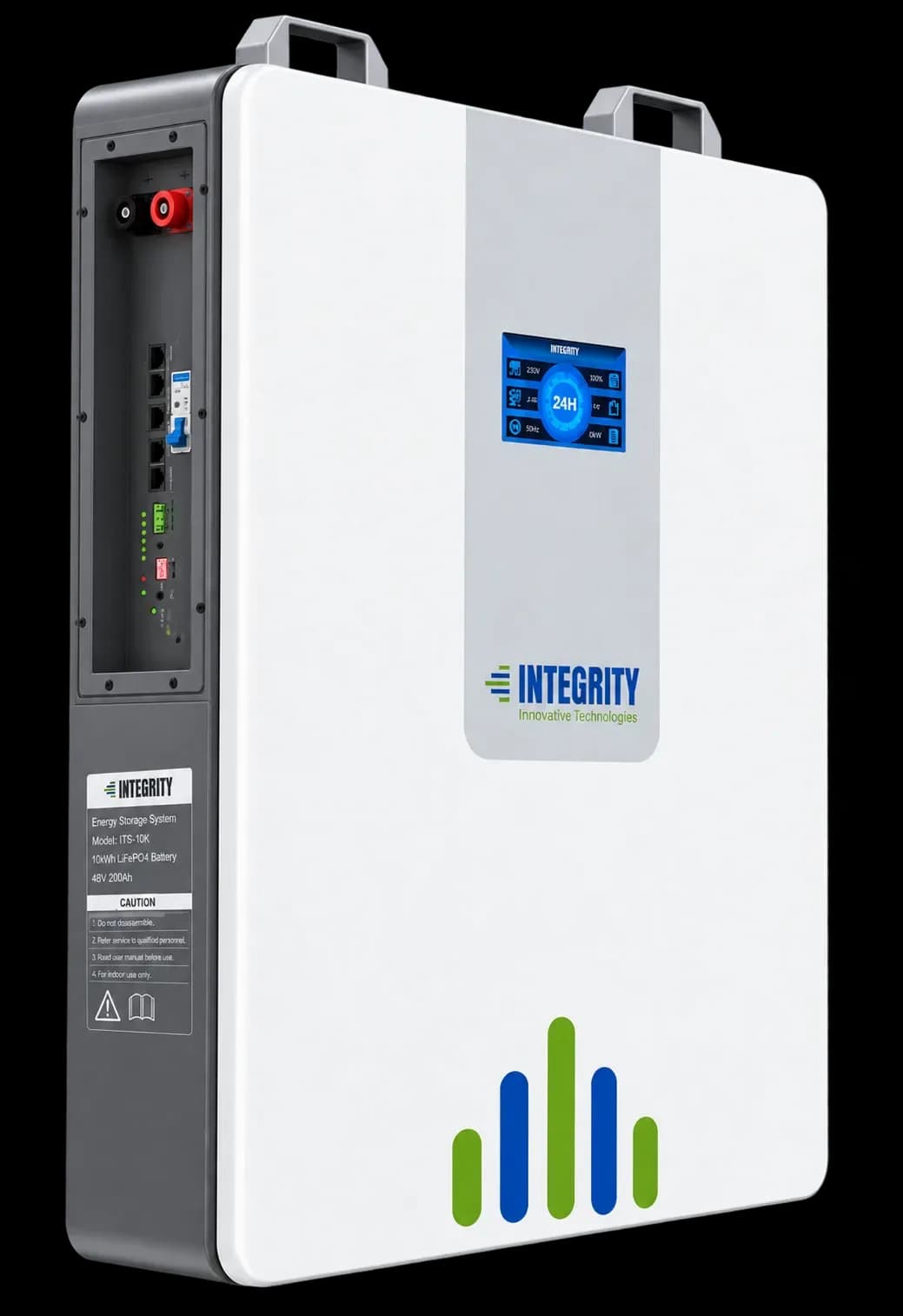

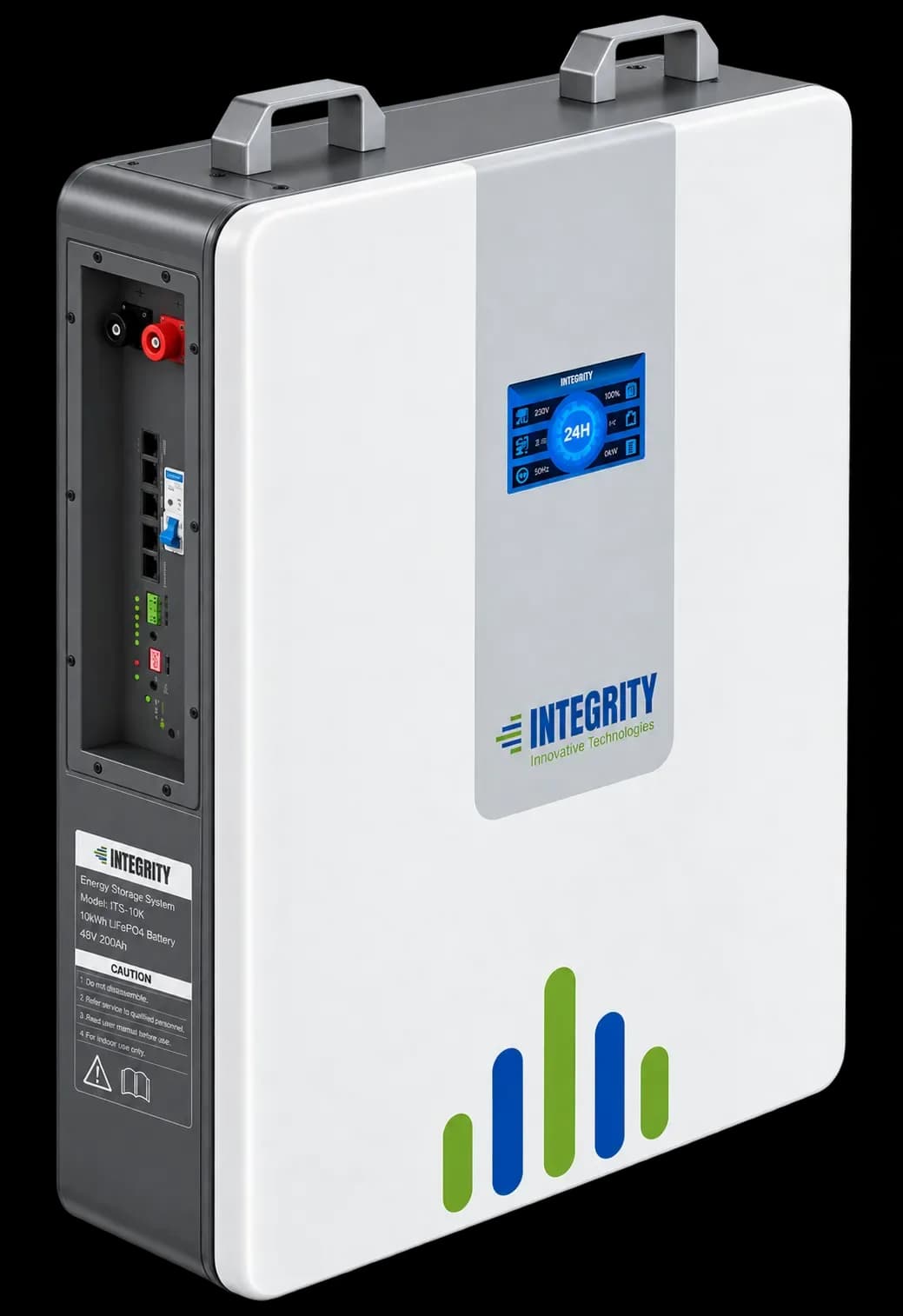

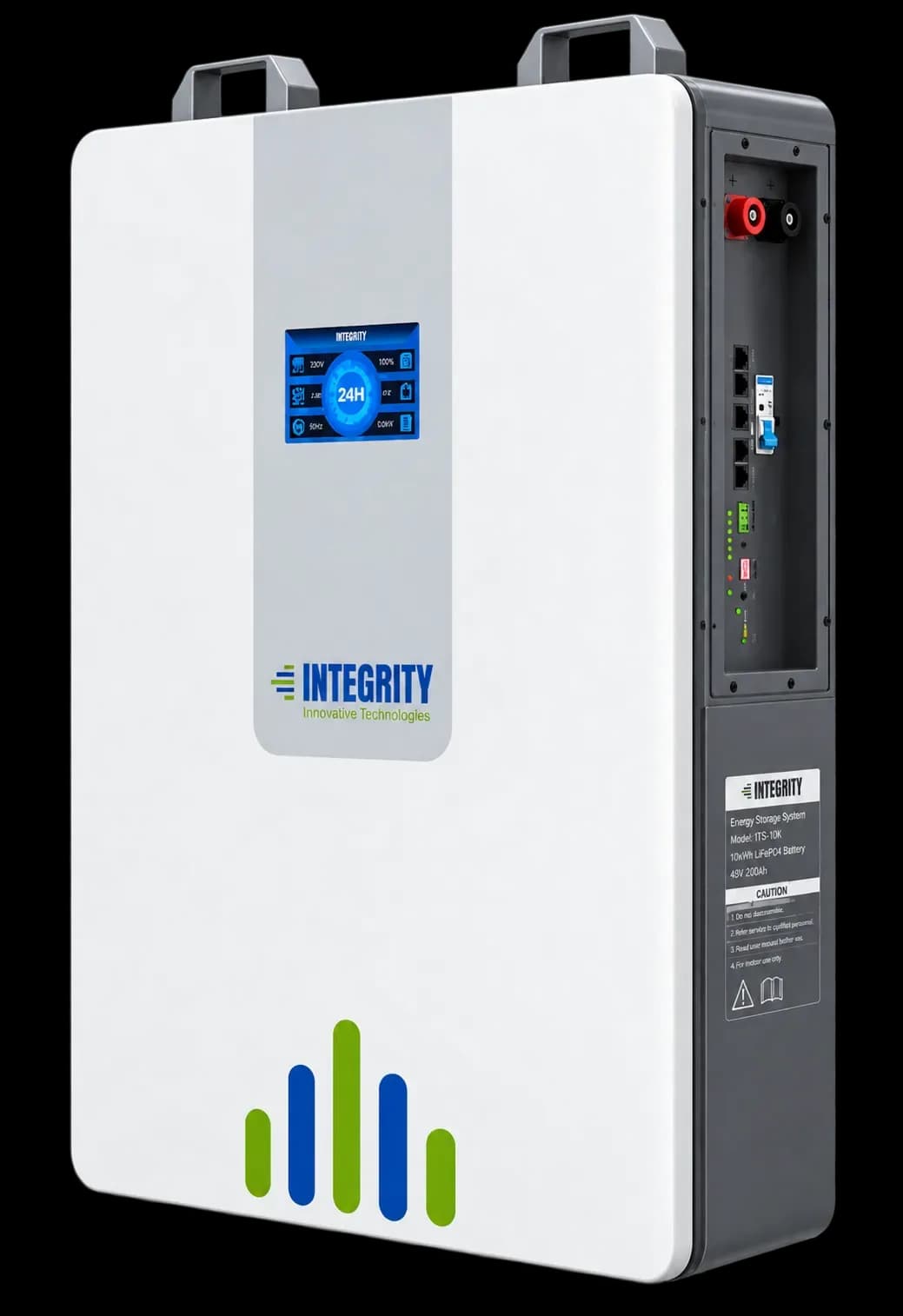

The IntegriStore WALL10 is a wall-mounted energy storage battery designed for household energy storage applications. With a rated energy capacity of 10240Wh, 51.2V rated voltage, and 200A rated current, it provides high-capacity energy storage in a compact wall-mounted form factor.
- 10240Wh rated energy capacity
- 51.2V rated voltage
- 200A rated current
- 40V voltage cut-off
- ≥6000 cycles at 25°C
Key figures
- 01
10240Wh
Rated Energy Capacity
- 02
51.2V
Rated Voltage
- 03
200A
Rated Current
- 04
40V
Voltage Cut-Off
Product overviewCompact wall-mounted energy storage for everyday power needs
The IntegriStore WALL10 is a wall-mounted energy storage battery designed for household energy storage applications. Its 10240Wh rated energy capacity provides a substantial storage solution while maintaining a compact wall-mounted form factor.
The battery operates at a rated voltage of 51.2V with a rated current of 200A and a voltage cut-off of 40V. The system is specified for ≥6000 cycles at 25°C, supporting repeated charge and discharge operation.
With a weight of 83kg and dimensions of 725 × 550 × 162mm, the WALL10 is designed for wall-mounted installation where efficient use of available space is important. The specified storage temperature range is 10°C to 60°C.
The system diagram shows the battery integrated with a hybrid inverter and connected to photovoltaic panels, a generator, household appliances, the power grid, and other energy-management components.
Key features
- 10240Wh rated energy capacity
- 51.2V rated voltage
- 200A rated current
- 40V voltage cut-off
- ≥6000 cycles at 25°C
- 83kg weight
- 725 × 550 × 162mm dimensions
- Storage temperature range of 10°C to 60°C
- Wall-mounted design
- Designed for household energy storage applications
Specifications
Datasheet- Rated Energy Capacity
- 10240Wh
- Rated Voltage
- 51.2V
- Rated Current
- 200A
- Voltage Cut-Off
- 40V
- Number of Cycles
- ≥6000 at 25°C
- Weight
- 83kg
- Dimensions
- 725 × 550 × 162mm
- Storage Temperature
- 10°C ~ 60°C
- Installation Type
- Wall Mounted
- System Connection
- Hybrid inverter, photovoltaic panels, generator, household appliances, power grid
FAQFrequently asked questions
What is the rated energy capacity of the WALL10?
What is the rated voltage of the WALL10?
What is the rated current?
What is the voltage cut-off?
How many cycles does the battery support?
How much does the WALL10 weigh?
What are the dimensions of the WALL10?
What is the storage temperature range?
How is the WALL10 installed?
What can the WALL10 be connected with?
Is the WALL10 suitable for household energy storage?
What type of system is shown with the WALL10?
