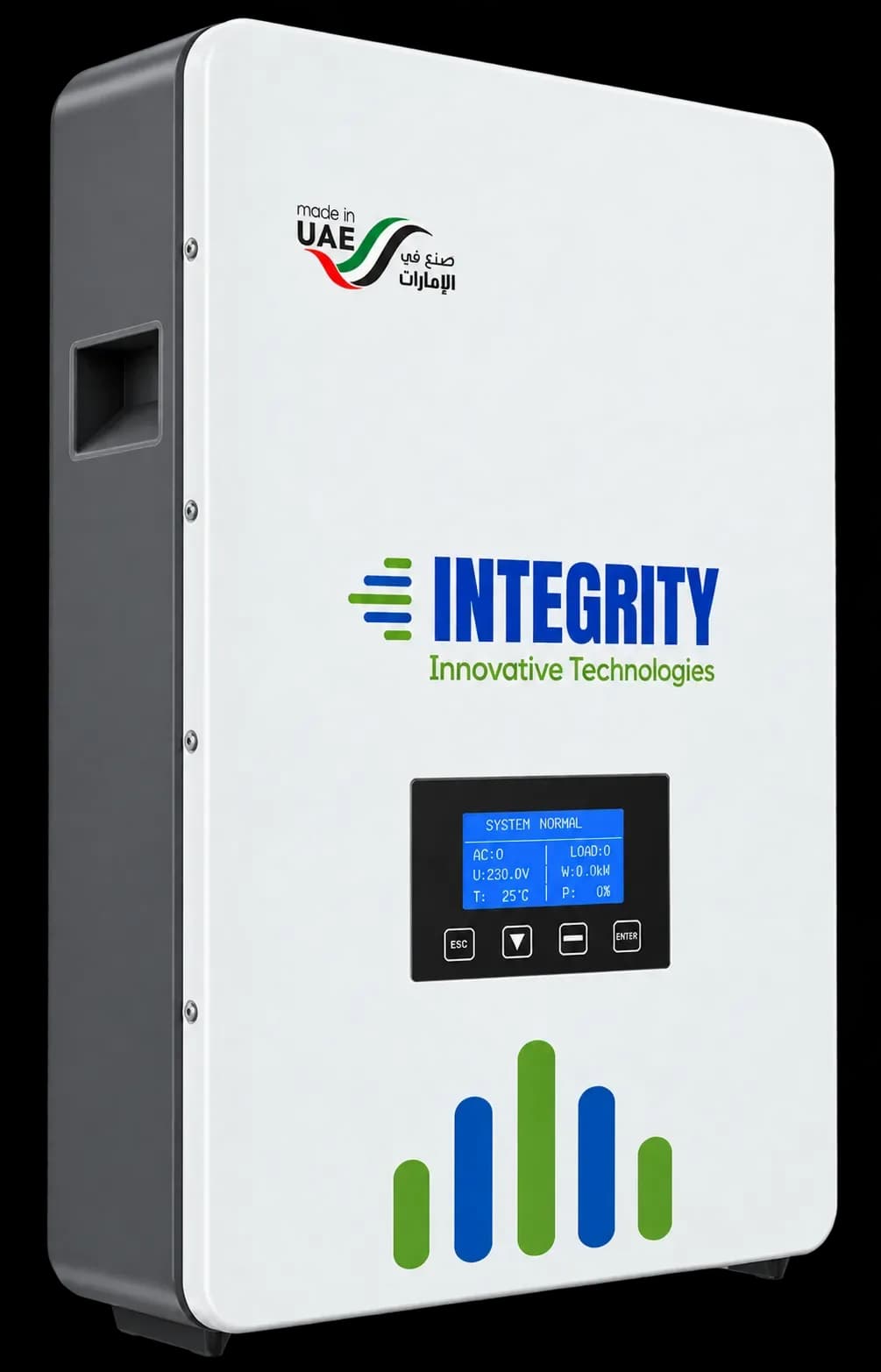

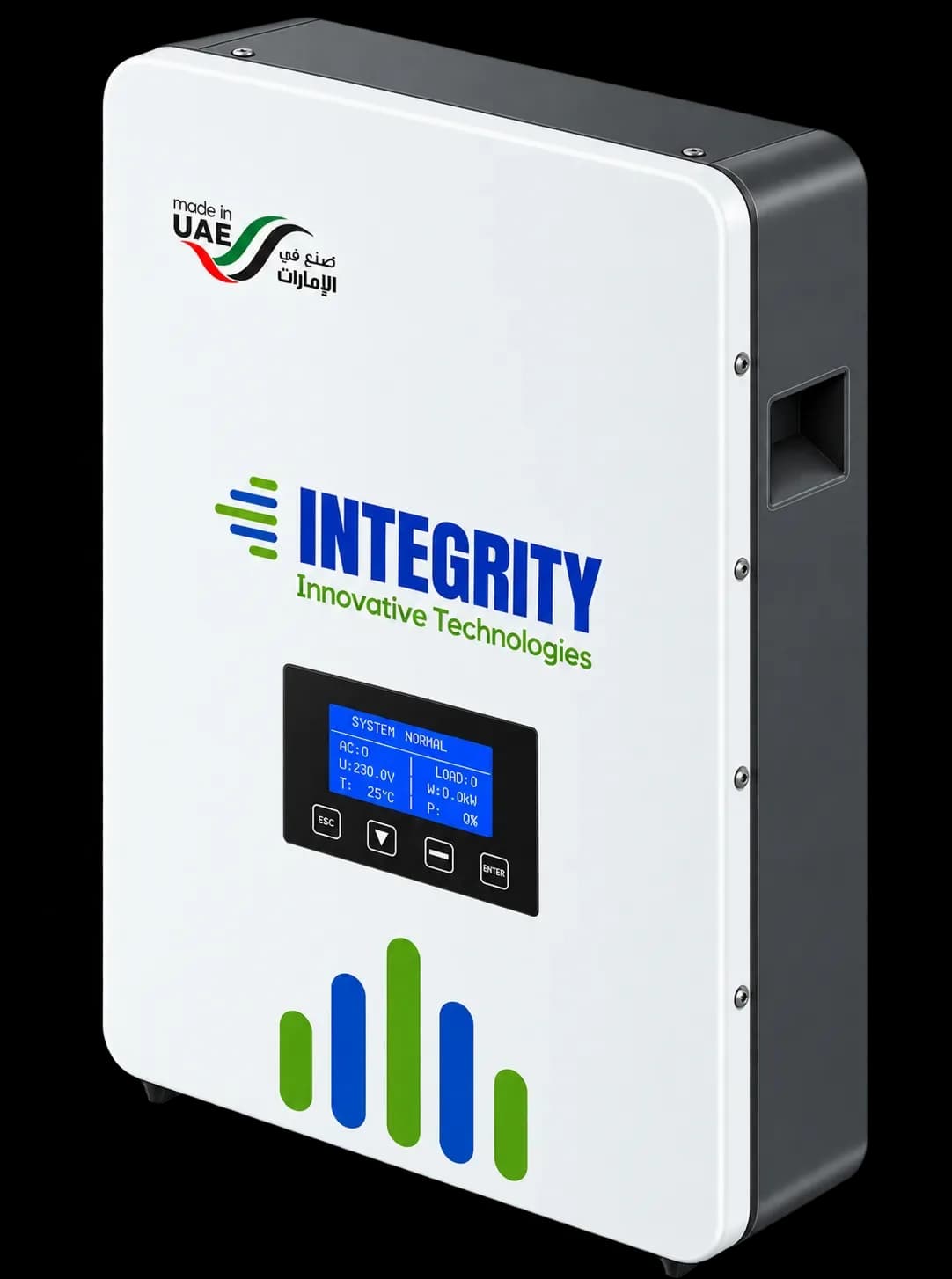

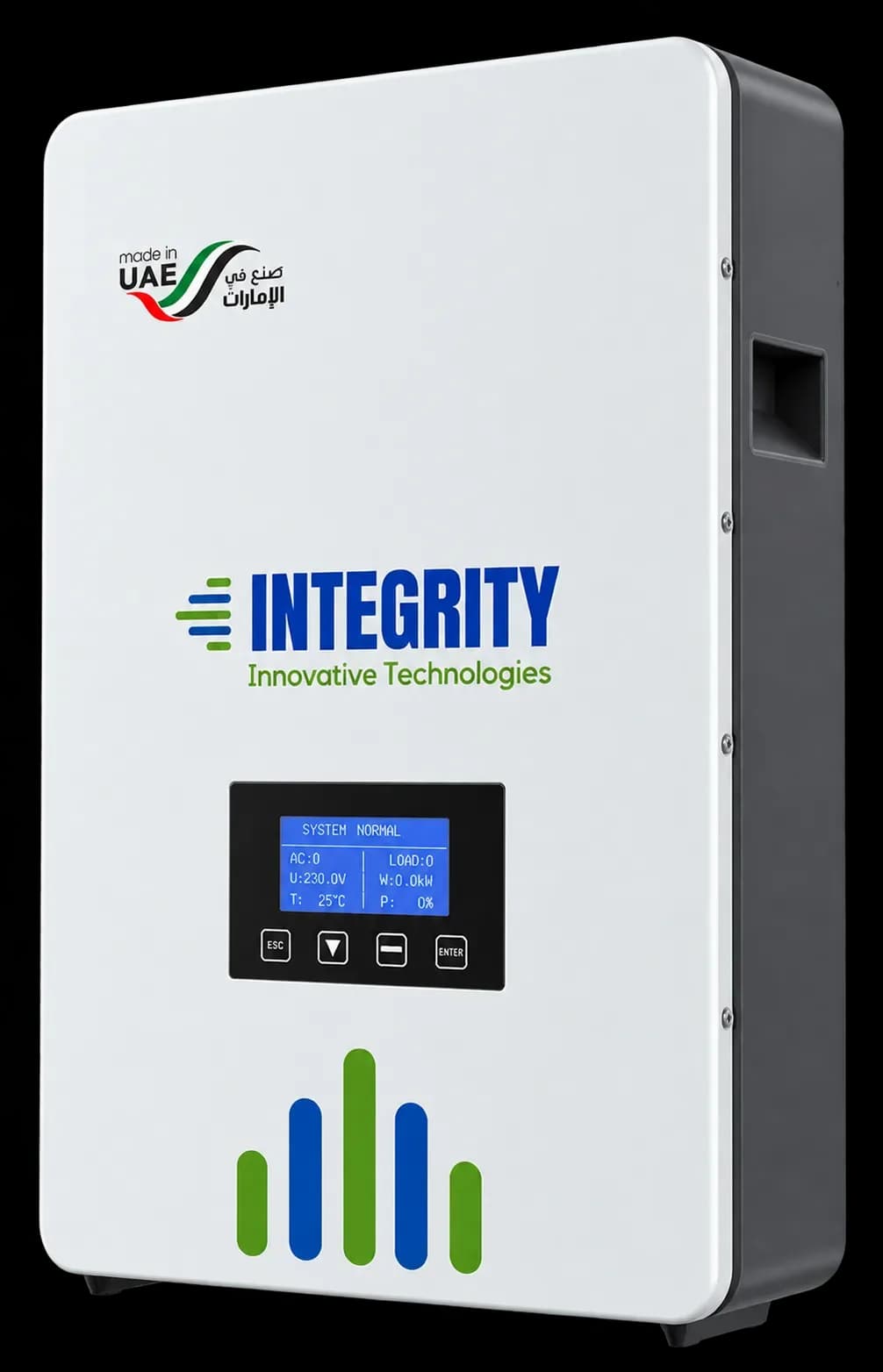

IntegriStore WALL5
The IntegriStore WALL5 is a compact wall-mounted energy storage battery designed for household energy storage applications. With a rated energy capacity of 5120Wh, 51.2V rated voltage, and 100A rated current, it provides reliable energy storage in a space-efficient wall-mounted design.
- 5120Wh rated energy capacity
- 51.2V rated voltage
- 100A rated current
- 40V voltage cut-off
- ≥8000 cycles
Key figures
- 01
5120Wh
Rated Energy Capacity
- 02
51.2V
Rated Voltage
- 03
100A
Rated Current
- 04
40V
Voltage Cut-Off
Product overviewCompact energy storage designed for the home
The IntegriStore WALL5 is a wall-mounted energy storage battery designed for household energy storage applications. Its 5120Wh rated energy capacity provides a practical storage solution in a compact and space-efficient form factor.
Operating at a rated voltage of 51.2V and rated current of 100A, the WALL5 has a specified voltage cut-off of 40V. The battery is designed for long-term repeated operation with a cycle life of ≥8000 cycles.
With a weight of 48kg and dimensions of 590 × 380 × 145 ± 2mm, the WALL5 is designed for wall-mounted installation where efficient use of available space is important. Its specified storage temperature range is 10°C to 60°C.
The system diagram shows the battery integrated with a hybrid inverter and connected with photovoltaic panels, a generator, household appliances, the power grid, and related energy-management components.
Key features
- 5120Wh rated energy capacity
- 51.2V rated voltage
- 100A rated current
- 40V voltage cut-off
- ≥8000 cycles
- 48kg weight
- 590 × 380 × 145 ± 2mm dimensions
- Storage temperature range of 10°C to 60°C
- Wall-mounted design
- Designed for household energy storage
Specifications
Datasheet- Rated Energy Capacity
- 5120Wh
- Rated Voltage
- 51.2V
- Rated Current
- 100A
- Voltage Cut-Off
- 40V
- Number of Cycles
- ≥8000
- Weight
- 48kg
- Dimensions
- 590 × 380 × 145 ± 2mm
- Storage Temperature
- 10°C ~ 60°C
- Installation Type
- Wall Mounted
- System Connection
- Hybrid inverter, photovoltaic panels, generator, household appliances, power grid
FAQFrequently asked questions
What is the rated energy capacity of the WALL5?
What is the rated voltage of the WALL5?
What is the rated current?
What is the voltage cut-off?
How many cycles does the WALL5 support?
How much does the WALL5 weigh?
What are the dimensions of the WALL5?
What is the storage temperature range?
How is the WALL5 installed?
What is the WALL5 designed for?
What can the WALL5 be connected with?
Can the WALL5 be used as part of a solar energy system?
Ready to size your system?
Tell us your load profile and our engineers will spec, size, and price a system for you — no obligation.
