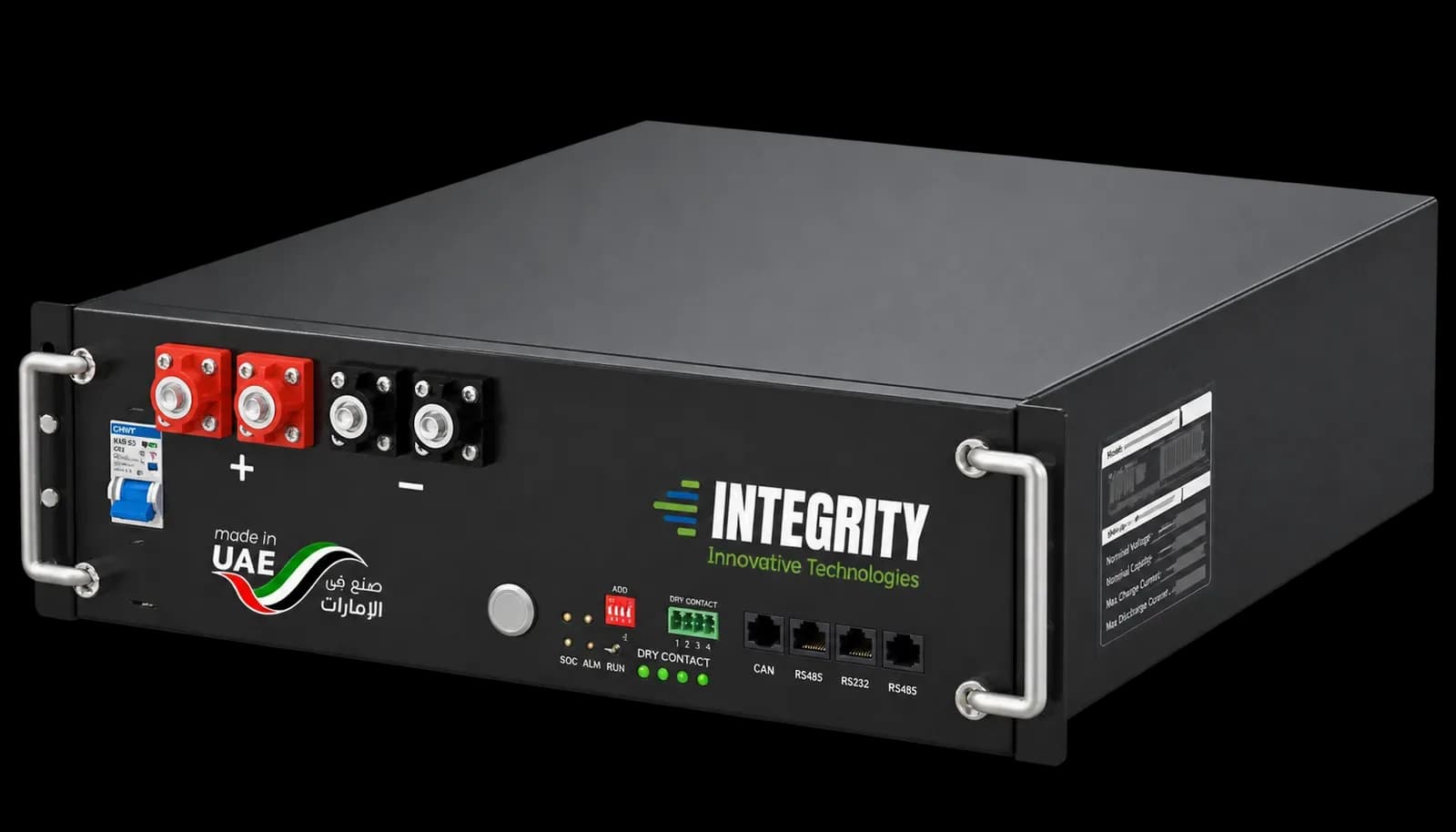

RAC5
The RAC5 is a 5kWh rack-mounted energy storage battery designed for flexible energy storage applications. With a rated energy capacity of 5120Wh, 51.2V rated voltage, and 100A rated current, it provides a compact and practical battery solution for integration with inverter-based energy systems.
- 5120Wh rated energy capacity
- 51.2V rated voltage
- 100A rated current
- 40V voltage cut-off
- ≥6000 cycles at 25°C
Key figures
- 01
5120Wh
Rated Energy
- 02
51.2V
Rated Voltage
- 03
100A
Rated Current
- 04
40V
Voltage Cut-Off
Product overviewCompact rack-mounted energy storage
The RAC5 is a 5kWh rack-mounted battery designed for energy storage applications where a compact and organized installation is required.
With a rated energy capacity of 5120Wh, 51.2V rated voltage, and 100A rated current, the RAC5 provides a practical energy storage solution for inverter-based systems. Its specified voltage cut-off is 40V, while the battery is rated for ≥6000 cycles at 25°C.
The compact rack-mounted form factor measures 440 × 480 × 133mm and weighs 48kg. The specified storage temperature range is 10°C to 60°C.
The system diagram shows the RAC5 integrated with an inverter and connected to photovoltaic panels, a generator, household loads, the power grid, and cloud management.
Key features
- 5120Wh rated energy capacity
- 51.2V rated voltage
- 100A rated current
- 40V voltage cut-off
- ≥6000 cycles at 25°C
- 48kg weight
- 440 × 480 × 133mm dimensions
- Storage temperature range of 10°C to 60°C

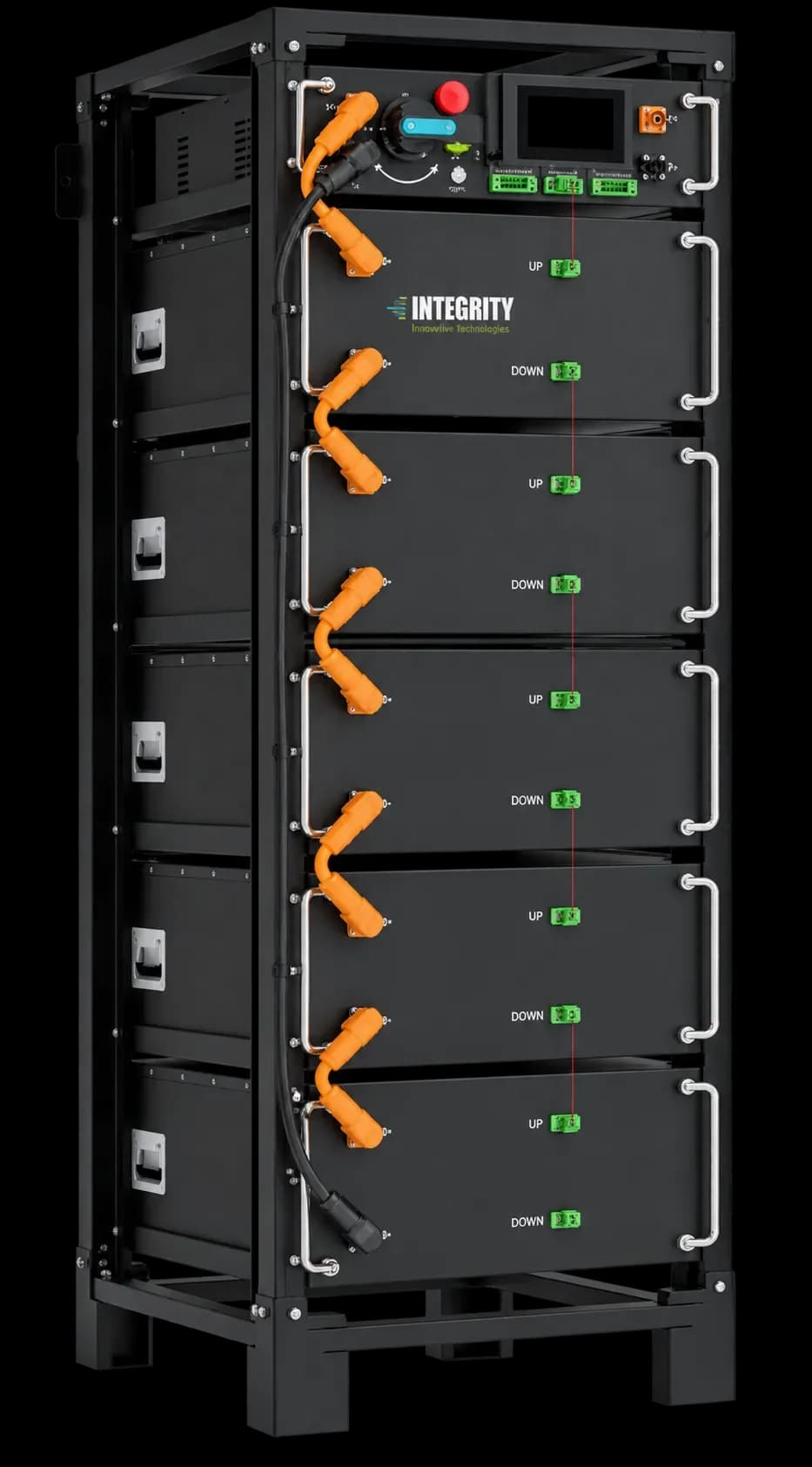

- Rack-mounted design
- Designed for energy storage system integration
Specifications
Datasheet- Rated Energy
- 5120Wh
- Rated Voltage
- 51.2V
- Rated Current
- 100A
- Voltage Cut-Off
- 40V
- Number of Cycles
- ≥6000 at 25°C
- Weight
- 48kg
- Dimensions
- 440 × 480 × 133mm
- Storage Temperature
- 10°C ~ 60°C
- Installation Type
- Rack Mounted
FAQFrequently asked questions
What is the energy capacity of the RAC5?
What is the rated voltage of the RAC5?
What is the rated current?
What is the voltage cut-off?
How many cycles does the RAC5 support?
How much does the RAC5 weigh?
What are the dimensions of the RAC5?
What is the storage temperature range?
What type of battery is the RAC5?
What can the RAC5 be integrated with?
